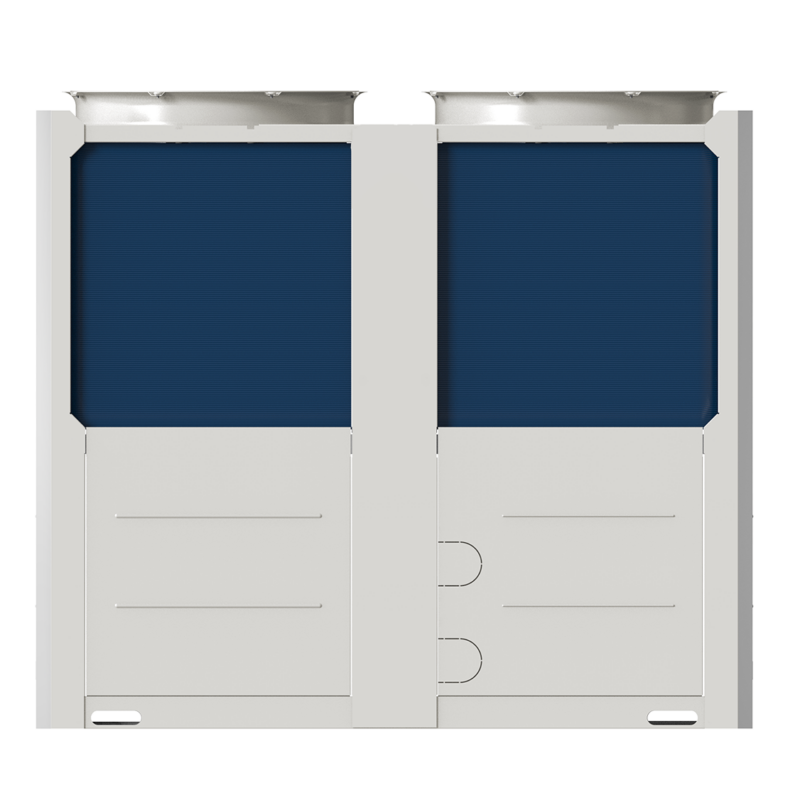

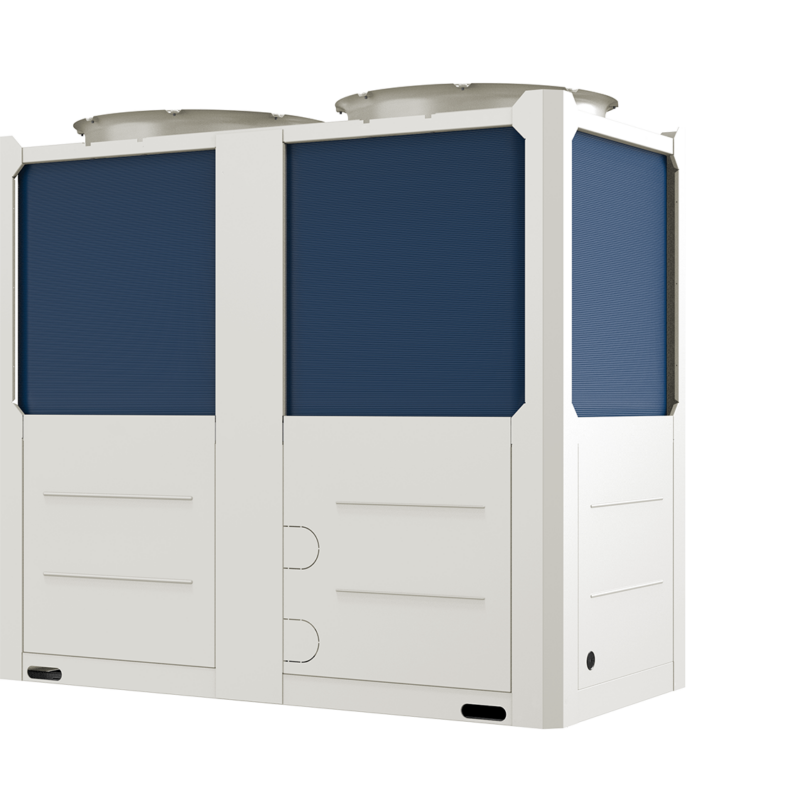

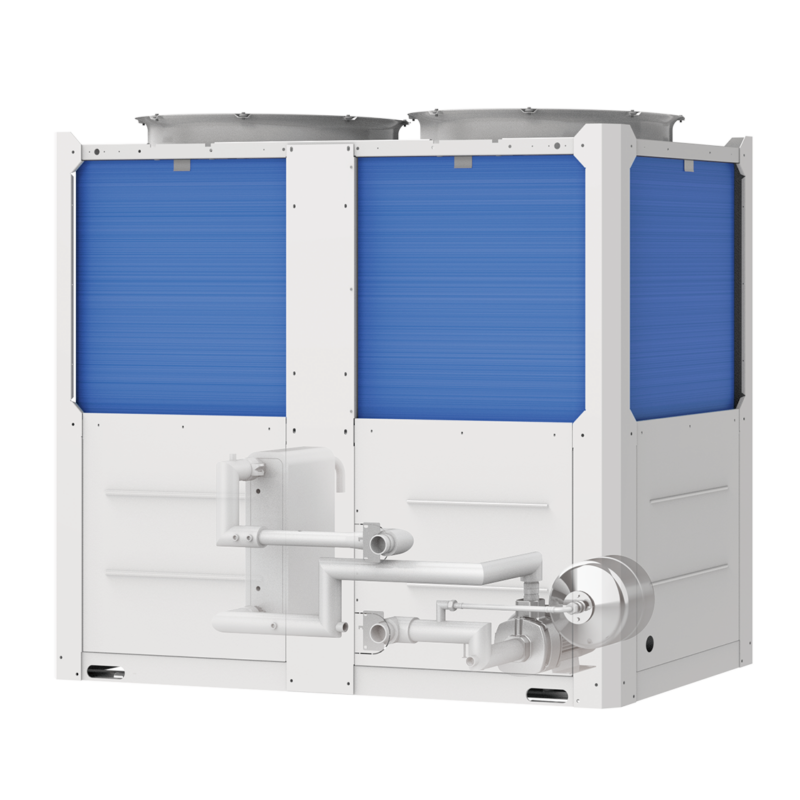

P-K EvoHP™ Commercial Heat Pumps

Models: HP700

The P-K EvoHP™ is an air to water heat pump engineered to seamlessly integrate with a traditional boiler system, enhancing comfort heat and domestic hot water provision while significantly reducing carbon emissions. This innovative design prioritizes sustainability by harnessing the efficiency of the heat pump. By leveraging both technologies in tandem, the system offers optimal performance and peace of mind, minimizing environmental impact without compromising on reliability or comfort. This integrated approach underscores a commitment to sustainability while maintaining the reliability expected in commercial heating applications.

For more information on how to integrate the P-K EvoHP™ into traditional boiler systems, Click Here for our Hybrid Systems Page.

Model Documents
General Documents

Rep LocatorProduct News


  • Up to 750mbtu capacity per appliance
  • Up to 8 units cascaded
  • Can be paired in hybrid heat pump/boiler
  • Low GWP refrigerants available
  • Meet carbon reduction goals up to 100%
  • Efficiencies up to 400%, CoP equal to 4.0
  • Comfort heat and DHW application options — up
    to 140 degrees Fahrenheit
  • Monoblock appliance design
  • Modulation of turndown with inverter technology
  • Operation down to -30 degrees Fahrenheit

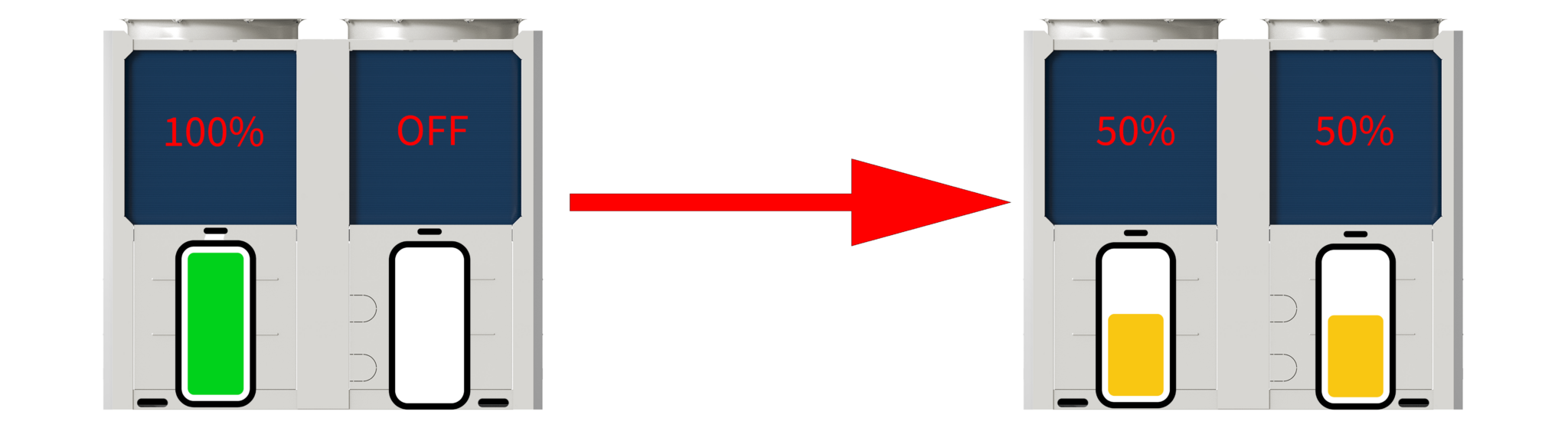

Intelligent Energy Management

The intelligent control and automatic load adjustment technology ensures the P-K EvoHP™ runs at maximum efficiency during part load demand periods. This minimizes deterioration of the compressors, extending the useful life of the appliance.

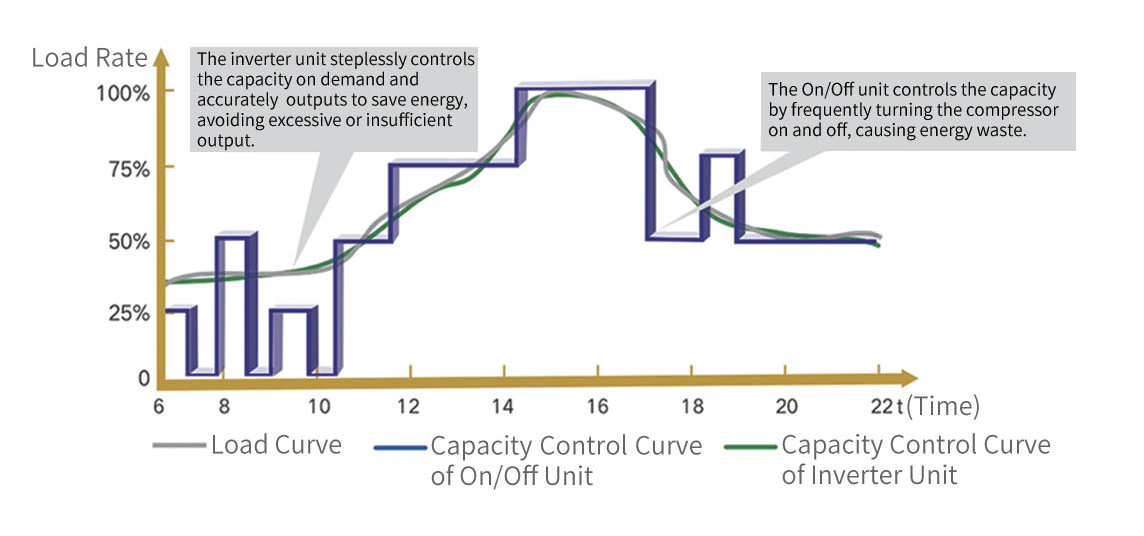

Stepless Capacity Control in All Conditions

Unlock unprecedented energy savings with the P-K EvoHP 15% – 100% stepless capacity control. Experience unparalleled efficiency as the system precisely matches output to actual load demand, ensuring maximum energy conservation even at at low loads.

Unlike traditional multi-compressor on/off systems, our inverter compressor smoothly adjusts its speed, seamlessly transitioning between loading and unloading operations without the unnecessary compressor starts and stops. This means reduced energy consumption and optimal performance, every time.

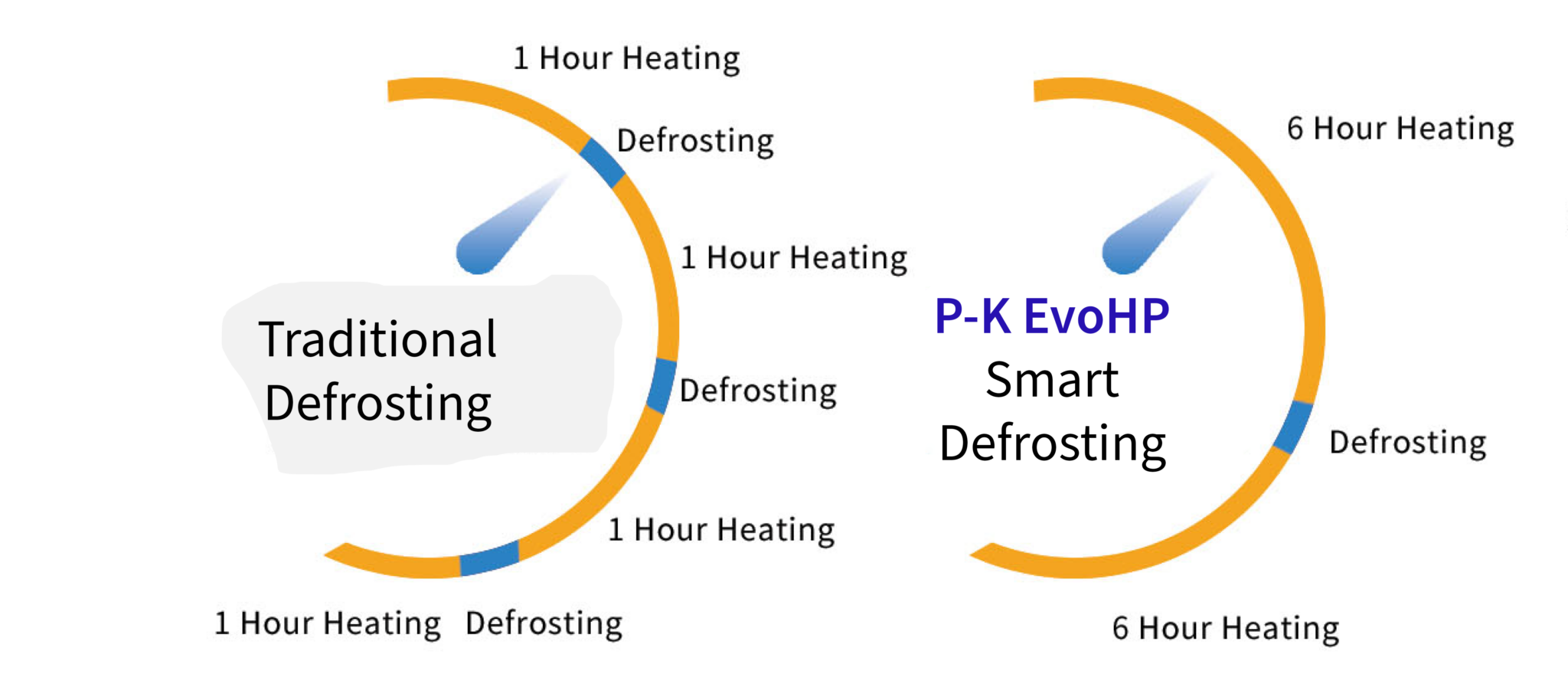

Second-Generation Intelligent Defrosting

P-K EvoHP utilizes intelligent defrosting technology, which can determine whether to defrost according to the operating conditions, ambient temperature, and frost density, which greatly extends the defrost cycle and reduces defrosting time by more than 20%. As a result, the unit operates with optimal heating capacity and energy efficiency.
